MOBIPOWER-200K
Methanol-to-Hydrogen Fuel Cell + 200 kW Clean Power
Clean diesel genset replacement
About MOBIPOWER-200K

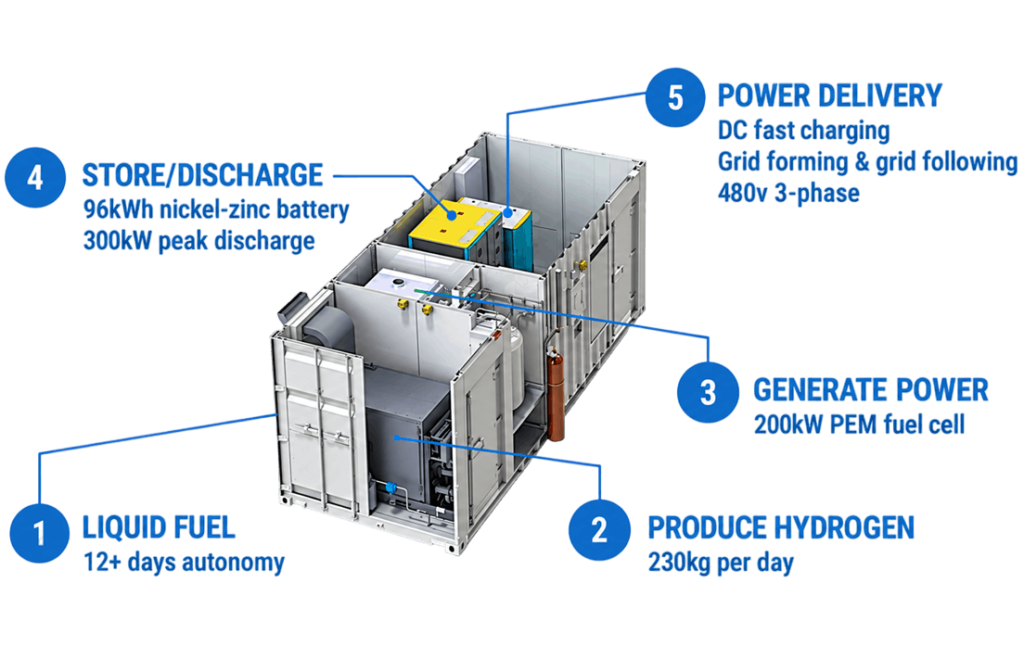

The MOBIPOWER-200K is a 20 ft containerized power plant that produces
hydrogen on site from methanol and water, converts it through a 200 kW
PEM fuel cell, buffers output with a 96 kWh nickel-zinc battery, and delivers

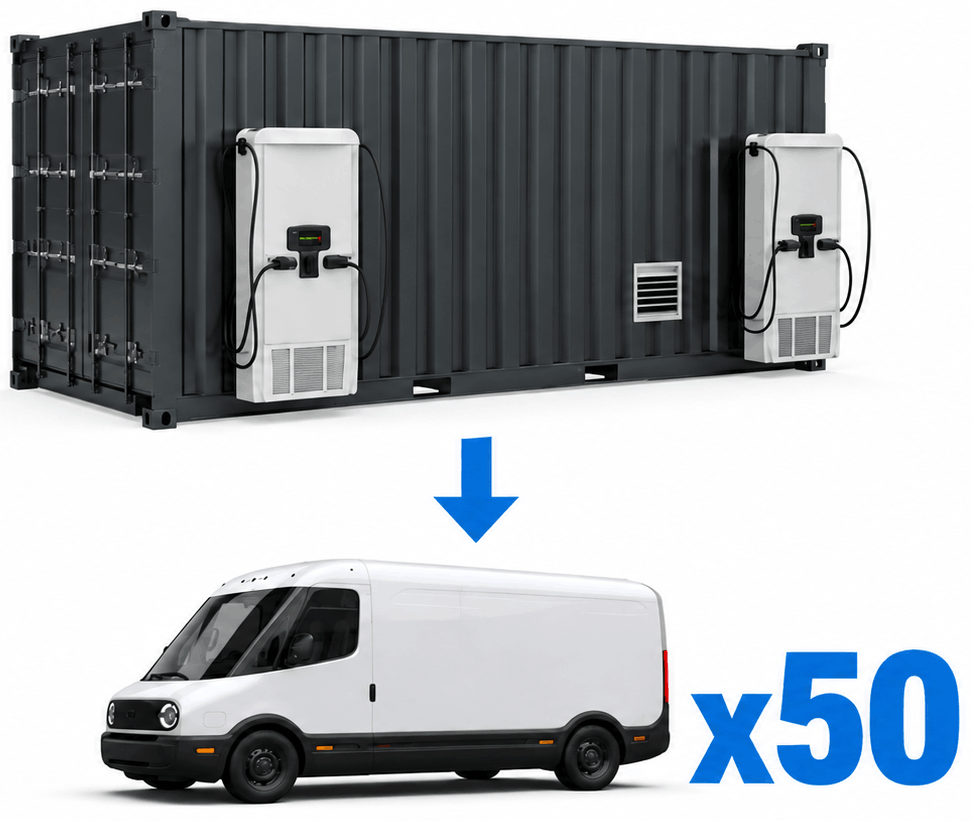

480 V 3-phase power or DC fast charging. Drop and play, no foundations,
no permanent infrastructure, and scalable to multi-megawatt sites by
adding units.
Methanol is what makes it practical. It is liquid at ambient temperature, the
densest hydrogen carrier available, and it stores and trucks like diesel. No
compressed or liquefied hydrogen logistics, no boil-off, and the lowest cost
per kilogram of hydrogen delivered (US DOE). Its flammability profile sits
closer to diesel than to gaseous hydrogen, and distribution is already in
place across North America.
Why MOBIPOWER-200K?
Technical Snapshot
| Fuel Cell | 200 kW PEM |
| Hydrogen Production | 230 kg/day, on-site methanol reformer |
| Fuel Type | Methanol + water; 12+ days autonomy |
| Power Output | 200 kW continuous / 300 kW peak |
| Energy per Day | 3.5 MWh |
| Battery Bank | 96 kWh nickel-zinc; 300 kW peak discharge |
| Nominal Voltages | 480 VAC 3-phase; DC fast charging; grid forming and grid following |
| Emissions | No NOx / PM / SOx; 35 to 100% lower CO2 |
| Operating Range | Proven sub-zero, extreme heat, high altitude, dust storms |
| Enclosure | 20 ft ISO container, transportable, no permanent infrastructure |
| Scalability | Parallel units to multi-MW |
Applications
Key Takeaways
Low levelized cost of electricity
Lower LCOE than Diesel & Propane w/o Subsidies
| Diesel Generator |
Propane Generator |
MOBIPOWER-200K with LCFS |
MOBIPOWER-200K w/o LCFS |
|||||
|---|---|---|---|---|---|---|---|---|
| Asset Description | ||||||||
| Nameplate Capacity (kW) | 200 | 200 | 200 | 200 | ||||
| Operating Rate (% Capacity) | 75% | 75% | 75% | 75% | ||||
| Efficiency | 30% | 25% | 50% | 50% | ||||
| Fuel Assumptions | ||||||||
| Diesel/Propane Cost ($/gal) | $ | 5.00 | $ | 2.50 | - | |||
| Methanol Cost ($/kg) | - | - | $ | 0.50 | $ | 0.50 | ||
| Grants/ITCs/LCFS | ||||||||
| LCFS Credits ($/kWh) | $ | - | $ | 0.10 | $ | - | ||
| Investment Tax Credits (%) | $ | - | 50% | 50% | ||||
| Grants ($000) | $ | - | $ | - | $ | - | ||
| LCOE ($/kWh) | ||||||||
| Fuel | $ | 0.44 | $ | 0.37 | $ | 0.14 | $ | 0.24 |
| Return of Capital | 0.02 | 0.02 | 0.06 | 0.06 | ||||
| Maintenance | 0.05 | 0.05 | 0.05 | 0.05 | ||||
| Total | $ | 0.51 | $ | 0.44 | $ | 0.24 | $ | 0.35 |
LCOE - Diesel & Propane Gensets vs. MOBIPOWER-200K
- Diesel Generators
- Propane Generators
- MOBIPOWER-200K with LCFS
- MOBIPOWER-200K w/o LCFS
Ready to Transition Beyond Diesel?
Discover the next generation of mobile,
autonomous clean power.
autonomous clean power.
MOBISMART integrates solar, fuel cells, and batteries into hybrid systems that deliver where diesel falls short.
